AGB: [iceboy] #3 - AJ10217846

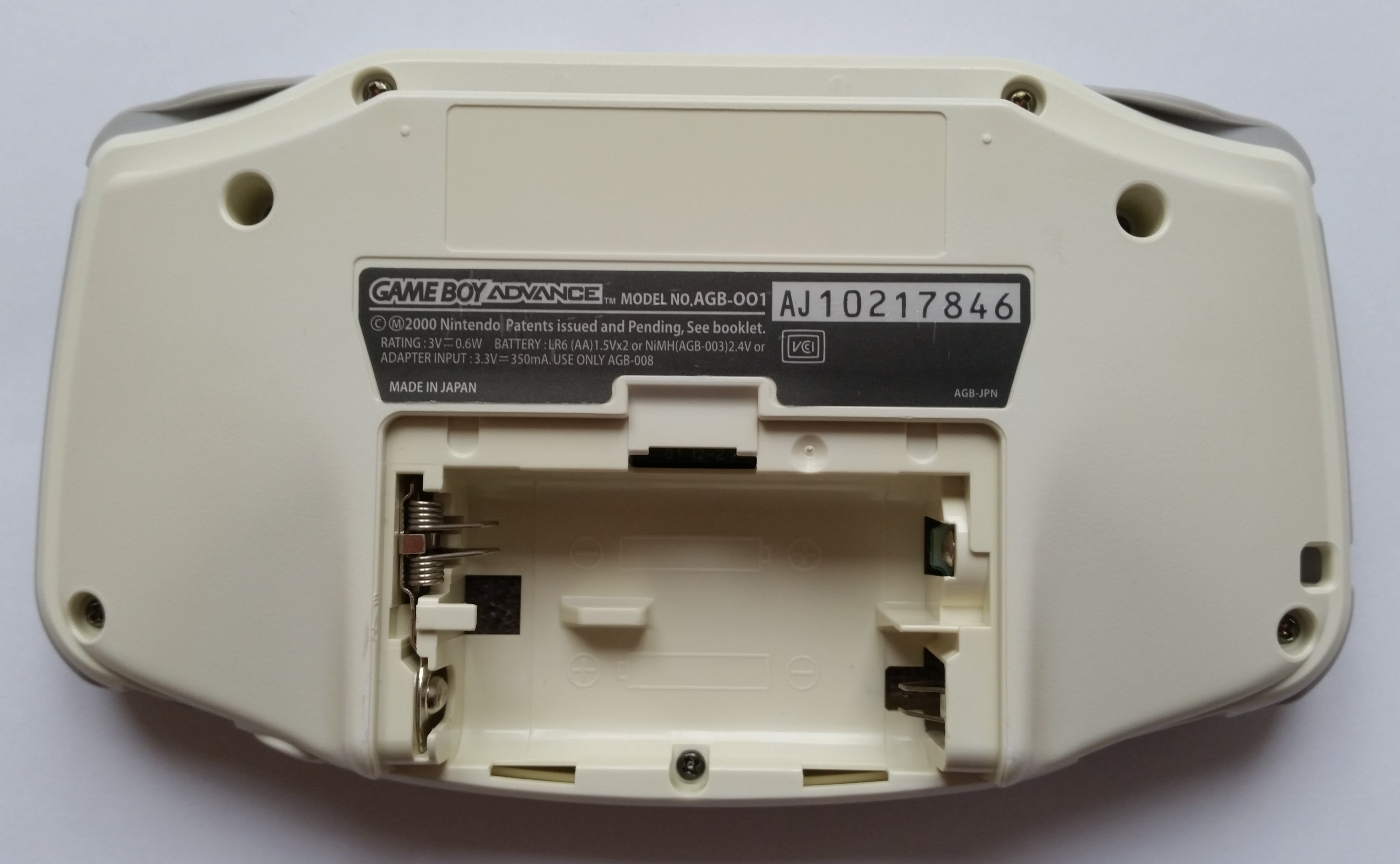

Front side of Game Boy AdvanceBack side of Game Boy Advance

Color
arctic
Release code
AGB-JPN
Assembly date
Week 7/2001

Mainboard

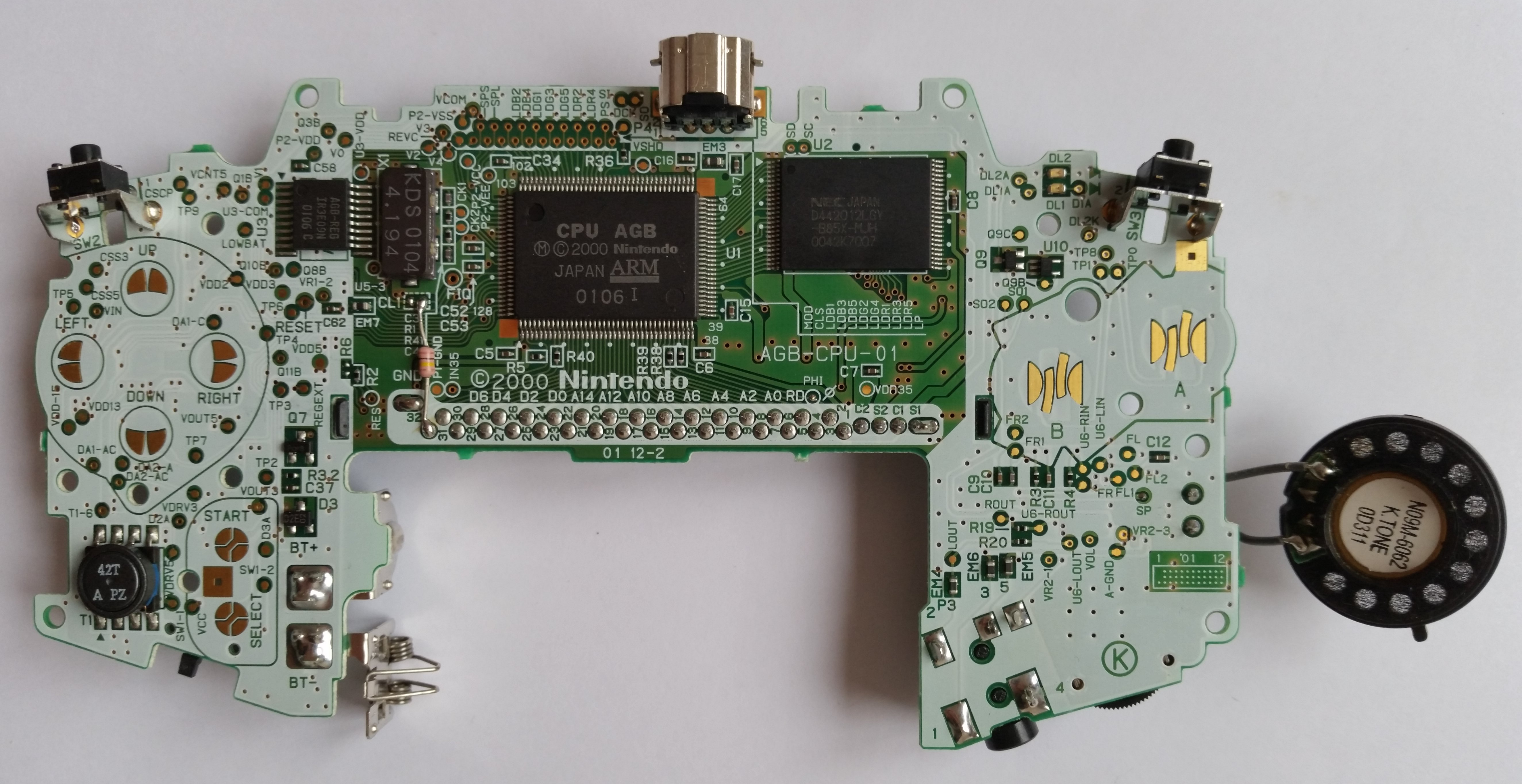

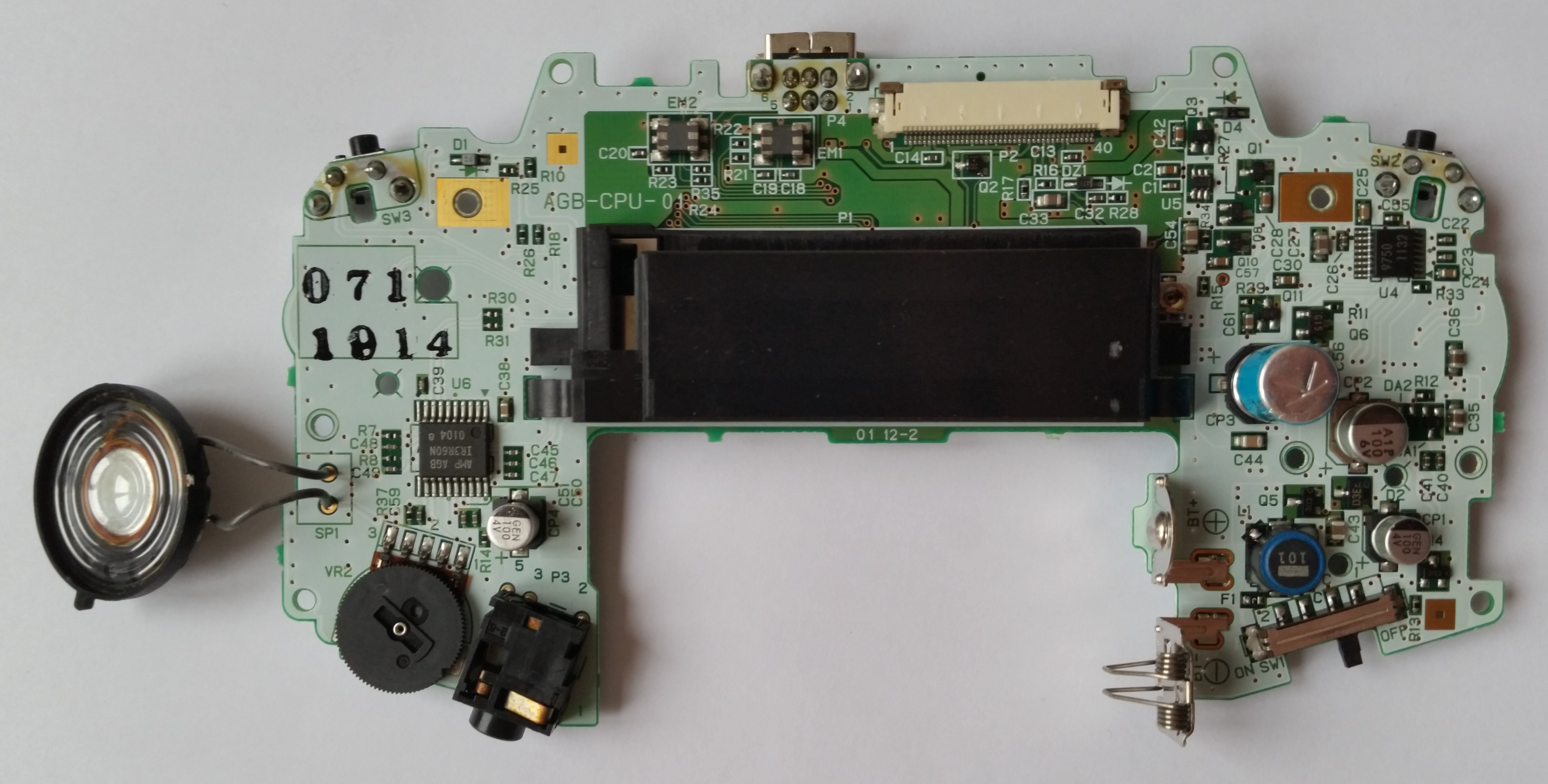

Front side of Game Boy Advance circuit boardBack side of Game Boy Advance circuit board

Board type
AGB-CPU-01
Manufacture date
January/2001
Number pair on board
12-2
Stamp on board
071 1914
Circled letter(s) on board
K
Extra stamp on front
-
Extra stamp on back
-
Has third screw
yes

LCD Panel

Panel label
L?029B2DD01I 12V00046673

Chips

 ChipTypeManufacturerDateLabel
U1CPUCPU AGBSharpWeek 6/2001
CPU AGB
Ⓜ © 2000 Nintendo
JAPAN ARM
0106 I
U2Work RAMµPD442012LGY-B85X-MJHNECWeek 42/2000
NEC JAPAN
D442012LGY
-B85X-MJH
0042K7007
U3LCD RegulatorIR3E09NSharpWeek 6/2001
AGB-REG
IR3E09N
0106 C
U4?9750?2001
9750
1132
U6AmplifierIR3R60NSharpWeek 4/2001
AMP AGB
IR3R60N
0104 a
X1CrystalKDS 4.194DaishinkuWeek 4/2001
KDS 0104
4.194

Notes

- Power switch is loosely contacting
    -> TODO: replace
- Battery cover is missing
    -> Attached replica part

Misc

CPU works
yes
